Carteck Switch
![](https://www.thegaragedoorcentre.co.uk/Manufacturers/GDC-Manufactures_Carteck.jpg)
NEW for 2024!! Luxury insulated steel side hinged garage doors in standard sizes and 3 trend colour choices. Most popular sizes to fit standard single garage openings.
Save hundreds of pounds if your garage is within the parameters of the standard sizes offered. Take advantage of 40mm thick insulated steel panels and if your garage is integral or you use it like another room to your home then these doors are perfect to give weather and thermal protection.
To make an enquiry about this product, please click the button "Make an enquiry" below this message, or call 0800 525 442
- description
- Specification
- Colours
- Mock-Leaded Window Design
Insulated, double skinned, steel side hinged garage doors. Factory pre-assembled with precision and everything you need already fitted and ready to go!
The Switch range uses double skin galvanised steel door leaves, aluminium outer sub frame, locking, hinges, handles and door stays, all factory pre fitted for the very easiest on site installation. No preparation required, door is prefinished in choice of super high quality powdercoat colours on a super stylish smooth finish, Vertical Ribbed design door with a new design of traditional window for natural light and vision.
U Value = 2.30 W/m2K
Brickwork Opening Sizes for a perfect fit. You can also expect the doors to fit perfectly well with brickwork sizes up to 20mm larger, or more, with packers and cloaking trims used.
Width x Height
2274mm x 2051mm
2274mm x 2204mm
2274mm x 2250mm
2426mm x 2051mm
2426mm x 2204mm
2426mm x 2250mm
Teckentrup Switch Exact Overall Frame Sizes
Width x Height Replaces:
2254mm x 2041mm (7066)
2254mm x 2194mm (7070)
2254mm x 2240mm (7074)
2406mm x 2041mm (7666)
2406mm x 2194mm (7670)
2406mm x 2240mm (7674)
The Switch insulated and luxury build side hinged doors have been developed to be the most cost effective solution to fitting standard size, pre built doors with a high specification in a select range of colours.
Out with the old doors and in with the new, along with better performance all round...
Solid 40mm Thick Panels
Interlocking insulated solid panels offer great overall strength and stability and of course the insulation too. Excellent strength also means excellent security and longevity.
High Quality Hinges
Aluminium surface mounted 3d adjustable hinges with three hinged fitted per door leaf
Aluminium Strip Threshold
A standard aluminium profile threshold with a blade seal optimises protection from leaves and other items which might blow inside. It is important your floor is level for optimum performance.
Double Weather strips and Mitred Corners
In addition to the weather strip around the door leaves the aluminium door sub frame also has a 3 sided weather strip for draught reduction. All profiles are mitred for the neatest finish.
Flush Bolt Security
The inactive door leaf is secured using flush bolts to the top and bottom of the panel. Each bolt has an adjustable flush bolt plate for greater versatility on the position of the leading edge for adjstements over time.
Security Lock Cylinder
Certified to BS EN1303 cylinder security grade 2 the lock cylinders provide enhanced security and are anti drill and anti pick. The cylinder also features a break off system to prevent the cylinder being broken by the use of a sacrificial section, breaking off if any attempt is made to break the cylinder by force. Every door comes with 3 keys as standard.
Stainless Steel Handles and Security Locking
HIgh grade stainless steel handles and lock covers are nt only attractive but also tough. The latch and dead bolt provides dependable security and a convenient thumb turn operated from the inside as standard. The inacitve leaf has a stainless steel strike plate for precise latching and an adjustable latch plate with a steel lock keep box for increased attack resistance
Friction Door Stays
Each door leaf is fitted with an easy action friction door stay holding the door leaves open when required. Not to be used in high winds and sensible use in most conditions.

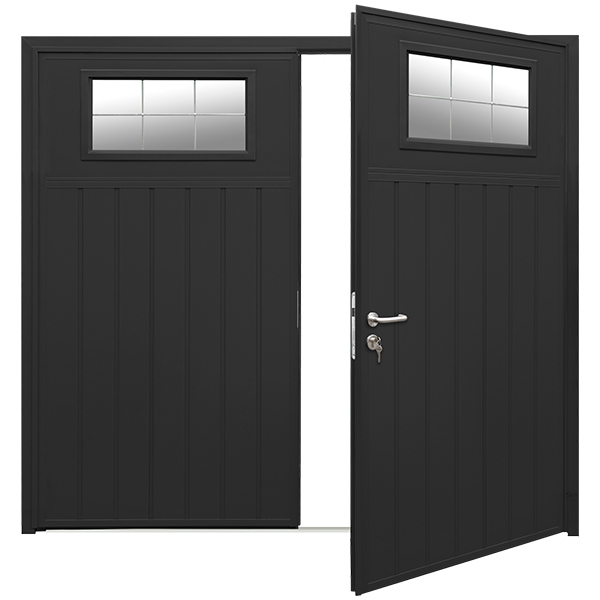

Black, White or Anthracite external colour finishes. High quality powdercoated finishes on galvanised steel surface with a smooth surface finish. Internal door leaves are an off white textured finish and keep the light levels up inside your garage.
As with ALL powdercoated steel garage doors the colours will not always match to other exact RAL reference colours due to different coating processes, gloss content levels, substrates and textures.
If the colour is super imrtant to you then please request a sample is sent for review.
![]() |
![]() |
![]() |

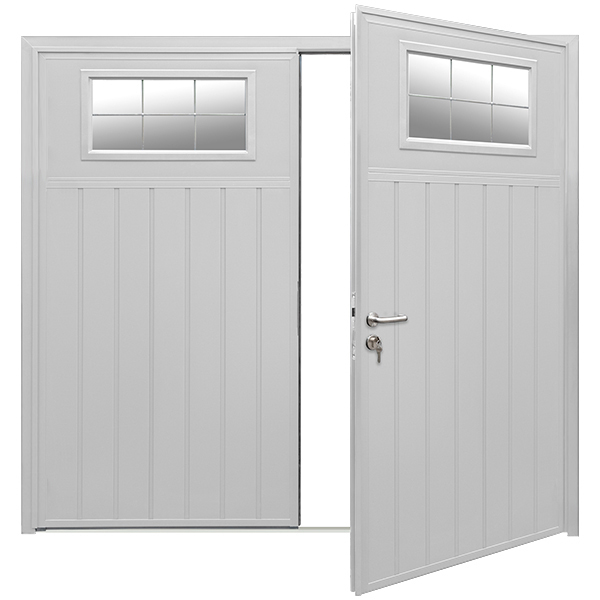

Classic polymer double glazed windows are available in clear glazing with black mock-lead effect lattice only and are 680mm wide x 370mm high for all the door sizes.
![]() |
![]() |
![]() |
