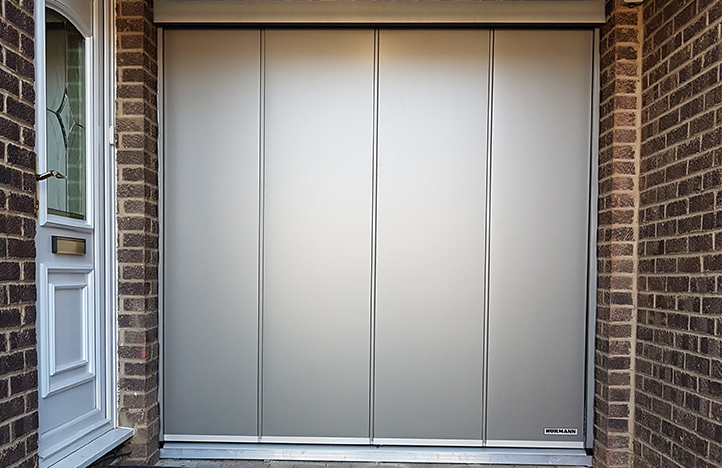

Insulated Steel Side Sectional Door - Single Size

Insulated Steel Side Sectional Door - Single Size

Insulated Steel Side Sectional Door - Single Size

Material:

Steel

Size:

Single

Electric Operation:

from £550 extra

Description:

Single Width Insulated Panelled Door

Prices Range:

£4,200 - £5,500

A sideways operating garage door can offer solutions not possible with up and over type mechanisms, not least offering the possibility to open your door partially to allow only pedestrian access, ideal for frequently used garages where the access may be to the home via the garage such as a mews style property.

There are really only two tried and tested side sectional type doors in the UK at present and thiese are the Hormann HST and the Ryterna double skinned, insulated doors. Manufactured from double skinned steel they offers excellent security and effortless operation with a beautifully balanced sliding track system.

Request a Callback

Please complete all requested fields.





Price

Price

Expect to pay between £4,200 and £5,500 inc. VAT installed for the installation of a manually operated door in white. with a choice of optional finished colours adding some cost on double skinned steel panels. The doors are either manual or remote control electric operated as with 2 hand held remote handsets as standard control method. There is always an internal manual release in case of a power failure to enable manual operation.

The doors are all made to measure as standard for a perfect fit but with some standard sizes which tend to be down to a standard size panel mix. A level floor is essential for the operation of this door.

We have been selling round the corner garage doors for over 30 years now and as far as we know every door is still fully operational because of their stress free operation and high quality build.

The single width size is generally between about 2.2m and 2.6m on a standard UK size double width garage. These doors are made to measure as standard on the width and the height with a standard height being around 2.2m in the UK.

Round The Corner Doors Explained

The short video below probably explains most about this door type

Round The Corner Doors Explained

Features

COLOURS AND FINISHES

This door has various panel surface finishes available - smooth silkgrain or woodgrain embossed being 2 of them. The same as a sectional door, these external face finishes provide a very different aesthetic and either a modern or more traditional feel to the panel whatever the colour.

There will be several standard solid colour finishes to choose from as well as various woodgrain effect options and special RAL colours if required. The basic standard colour is white and this is the basic starting price for the door.

SECURITY

The security on a panelled sectional RTC door like this is very good as it is like a sectional garage door but operating on its side. Strong panels made of steel, a strong tracking system holding the panels in place and whether it is manual or electric operated the door has a steel locking system and for manual locking euro profile cylinder as standard.

EASE OF USE

A simple push to one side and this door will slide along in its tracking.

With the standard electric operator option all you have to do is press a button either on one of the 2 hand transmitters supplied or the wall mounted control station which sits inside your garage with a built in courtesy light also built in. If there is a power cut then you have to enter the garage by another door and release the motor drive to operate the door manually which will be quite effortless. If there is no other access then there is a release mechanism which is attached to the handle or drilled into the panel as a key release mechanism with cable attachment.

OUR VIEW: from 37 years of experience...

The round the corner (RTC) garage door is one of the oldest types of door mechanism with original doors being made from timber and using furniture from various manufacturers, along with a tracking system concreted into the ground. The track was a dust and leaf trap, but these days the modern surface mounted tracking does not have this issue and most round the corner doors sold are either steel or aluminium panels, mainly floating at ground level.

An RTC door system offers a very reliable and stable door which will last for a very long time whilst offering effortless and reliable operation. It is a door type which can also give you the desirable partial opening for a pedestrian to walk in and out without ever opening the whole door.
This particular panel type sectional round the corner system is very weather resistant and offers a degree of insulation from the double skinned slats. The panels are the same as used in an insulated sectional overhead door so already proven well.

Do not dismiss this type of door simply because you think you will lose a wall in the garage. If you cherish the vehicle your park in your garage this door type will help you keep your garage very tidy and clean.
They may seem expensive at first glance, but it is a very good door system with a long lifespan because of the fairly frictionless movement and lack of stress on any given part.

You can also have one door opening one way and another the other way and joining in the middle doubling the potential maximum width possible.
