Insulated Steel Side Sectional Door - Double Size
Insulated Steel Side Sectional Door - Double Size
Insulated Steel Side Sectional Door - Double Size
Material:
Steel
Size:
Double
Electric Operation:
from £850 extra
Description:
Double Width Insulated Round the Corner Panelled Door
Prices Range:
£6,300 - £8,400
In double width sizes the round the corner door comes more into its own and the partial opening feature becomes very useful indeed. Partial opening for either a pedestrian accessing or for one vehicle width access only. You simply don't need to open the door fully to have access.
Also on many wilder garages we find the headroom to be more limited, particularly if the garage has a flat roof or is underneath a room in the house. This type of door required minimal headroom to operate with the top tracking system.
Key Features
* Price includes full site survey and installation within the local area. Contact us on 01933 229135 for details or to discuss supply only options
* Made to measure as standard
* Easy operation for pedestrian access
* Electric or manual operation available
Request a Callback
Please complete all requested fields.
Steel Insulated Side Sectional
Steel Insulated Side Sectional

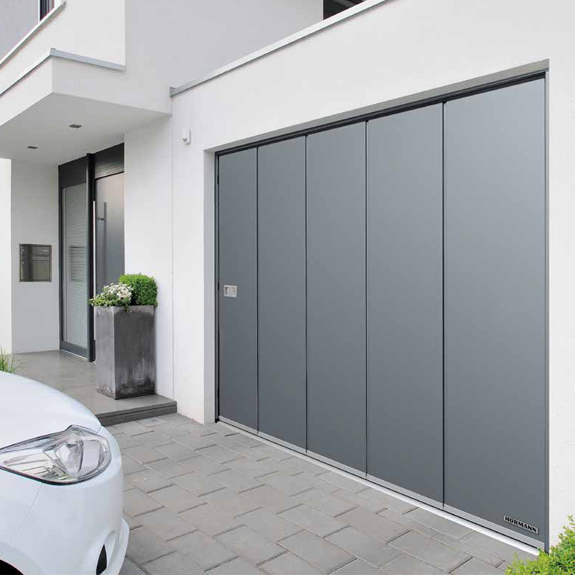

This side sectional type door is a round the corner door using larger panel sections which then enables a proper design on the front face, linear or Georgian cassette designs in variations. Windows are also a good option in this side sectional door design as they are a good size and let light and enable vision but are still double glazed units for strength and insulation.

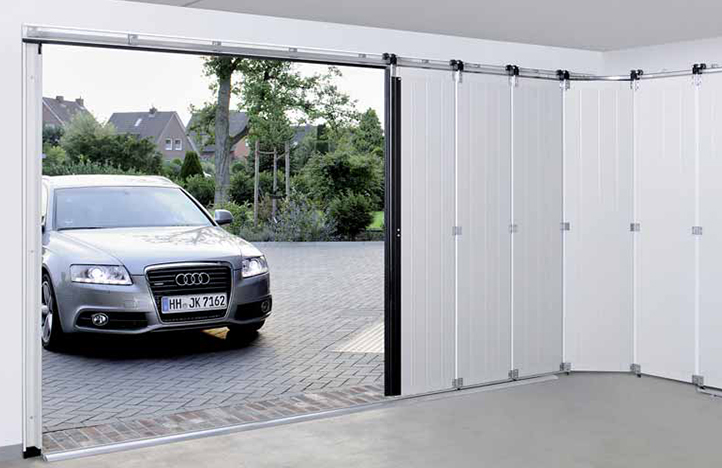

The side sectional door will slide across your garage and open internally down one of the garage walls (or both if bi parting) and offer full width and height for your drive through dimensions if you have sufficient internal space. They require minimum headroom for the top tracking and are always very quiet in their operation as well as offering partial opening function for pedestrian access in and out.
It is possible to also have the tracking at a more acute or obtuse angle if required. A round the corner garage door has an effortless operation with minimal contacting parts and as a door will last a very long time indeed as it does not have the stresses and strains of a roller or up and over door mechanism.
A lot of people say they do not want to lose one wall in the garage but we have found that those with this type of door appreciate the fact it makes you keep your garage tidy and clean. We have seen customers add a false wall where the sliding door curtain disappears behind, so this is an option if you really cannot do without one wall in your garage.
Every round the corner garage door we offer is made to measure to the millimetre and this type of door will only ever fit behind the garage opening as it requires a space internally for the curve of the tracking on one side and on the other a small return for the keep of the leading panel edge.
Minimum headroom is required and the bottom track is surface mounted to the floor offering a weather bar as well as the guide for the bottom of the door.
Price
Expect to pay between £6,300 and £8,400 inc. VAT installed for a one off installation of a manually operated door in white with a choice of optional finished colours adding some cost on double skinned steel panels. The doors are either manual or remote control electric operated as with 2 hand held remote handsets as standard control method. There is always an internal manual release in case of a power failure to enable manual operation.
The doors are all made to measure as standard for a perfect fit but with some standard sizes which tend to be down to a standard size panel mix. A level floor is essential for the operation of this door.
We have been selling round the corner garage doors for over 30 years now and as far as we know every door is still fully operational because of their stress free operation and high quality build.
The single width size is generally between about 4.4m and 4.6m on a standard UK size double width garage. These doors are made to measure as standard on the width and the height with a standard height being around 2.2m in the UK.
Price
Features
COLOURS AND FINISHES
This door has various panel surface finishes available - smooth silkgrain or woodgrain embossed being 2 of them. The same as a sectional door, these external face finishes provide a very different aesthetic and either a modern or more traditional feel to the panel whatever the colour.
There will be several standard solid colour finishes to choose from as well as various woodgrain effect options and special RAL colours if required. The basic standard colour is white and this is the basic starting price for the door.

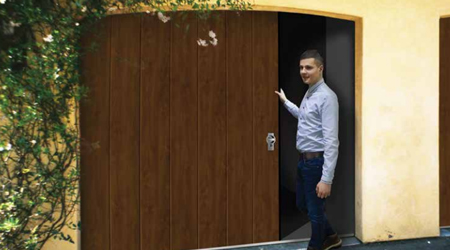

SECURITY
The security on a panelled sectional RTC door like this is very good as it is like a sectional garage door but operating on its side. Strong panels made of steel, a strong tracking system holding the panels in place and whether it is manual or electric operated the door has a steel locking system and for manual locking euro profile cylinder as standard.

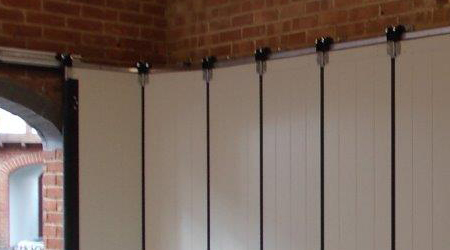

EASE OF USE
A simple push to one side and this door will slide along in its tracking.
With the standard electric operator option all you have to do is press a button either on one of the 2 hand transmitters supplied or the wall mounted control station which sits inside your garage with a built in courtesy light also built in. If there is a power cut then you have to enter the garage by another door and release the motor drive to operate the door manually which will be quite effortless. If there is no other access then there is a release mechanism which is attached to the handle or drilled into the panel as a key release mechanism with cable attachment.
OUR VIEW: from 35 years of experience...
The round the corner garage door is one of the oldest types of door mechanism with original doors being made from timber and using furniture from various manufacturers along with a tracking system concreted into the ground. The track was a dust and leaf trap but these days the modern surface mounted tracking does not have this issue and most round the corner doors sold are either steel or aluminium panels or slats.
A RTC door system offers a very reliable and stable door which will last for a very long time whilst offering effortless and reliable operation. It is a door type which can also give you the desirable partial opening for a pedestrian to walk in and out without ever opening the whole door.
This particular panel type sectional round the corner system is very weather resistant and offers a degree of insulation from the double skinned slats. The panels are the same as used in an insulated sectional overhead door so already proven well. Do not dismiss this type of door simply because you think you will lose a wall in the garage. If you cherish the vehicle your park in your garage this door type will help you keep your garage tidy and clean.
They may seem expensive at first glance but it is a very good door system with a long lifespan because of the fairly frictionless movement and lack of stress on any given part. You can also have one door opening one way and another the other way and joining in the middle doubling the potential maximum width possible.
