AlluGuard Roll 55 Electric Button Control




Manufacturer:
AlluGuard
Door Type:
Roller Garage Doors
Material:
Aluminium

To make an enquiry about this product, please click the button "Make an enquiry" below this message, or call 0800 525 442




  • description
  • Colours
  • Specification
  • Video

A pared-back, yet high quality, electric operated, aluminium roller garage door perfect for electric button operation when remote controls are not required.

The 55mm double skinned, insulated slats create a compact roller garage door designed for single width openings.

The 240v single phase internal tube motor operates the door via a wall mounted control panel, using basic 'up' and 'down' buttons which need to be pressed for the duration of the opening/closing. Because of this 'hold to run' system, the door does not require any safety edge sensors to be fully safety compliant for a busy home.

Hold to run rocker switch

The AlluGuard 55 is constructed from high quality 55mm deep double skinned aluminium slats with a foam filled core. It is a made to measure, 240V, tube motor operated, electric roller garage door, manufactured to the exact millimetre in width and height.

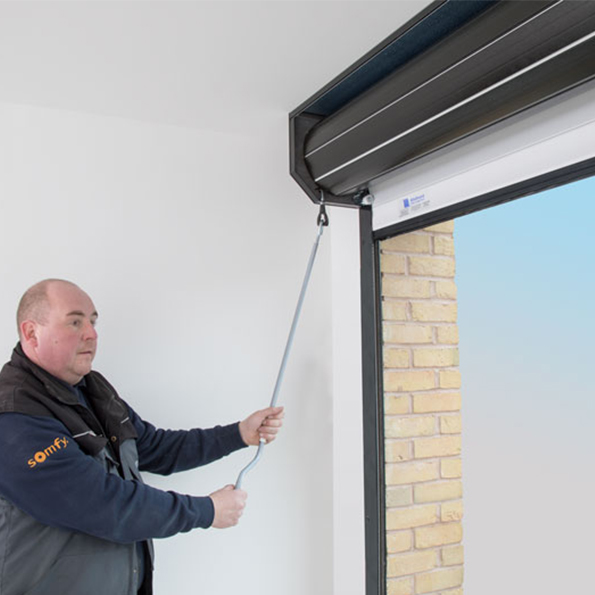

The door is electrically operated as standard and incorporates an internal emergency manual release in case of a power failure. This is a winding process using a winding handle provided attaching via a hook to the eye of the motor drive. This can be specified as either on the left or right as viewed from inside the garage (same side as motor).

A wall mounted hard wired control panel has an impulse push button for opening the door, with a stop button to stop it at any point. For closing the door, the down button is pushed and held until the door closes fully.

The Genesis wall mounted control system dimensions are 140mm h x 120mm w x 50mm d.

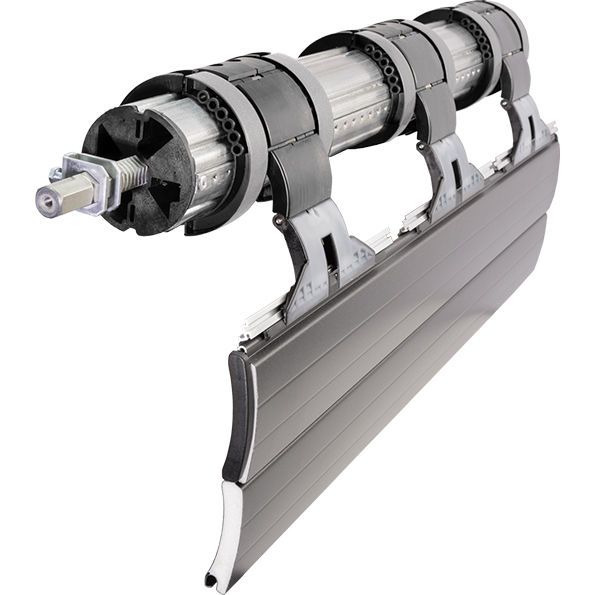

The curtain of this door rolls around a steel barrel which is supported either side by steel endplates which have a dimension of 205mm x 205mm, which is the headroom required if you wish to hide the roll. Always allow for a maximum 50mm of curtain ‘hang down’ when the door is opened if the opening height is critical to you. This is the same on all roller garage doors.

The guide height as used for ordering does not included the endplate size above it and the loss of drive through height with the bottom slat hang down when open.

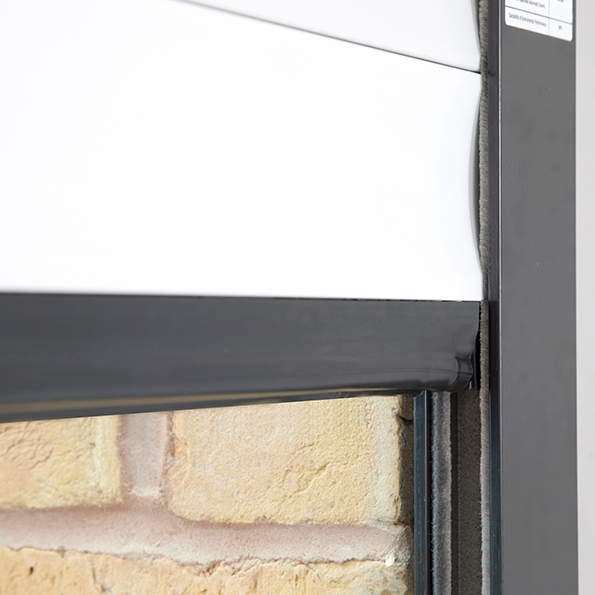

Door guides either side are 60mm wide and 34mm deep and the door is ordered using the ‘OVERGUIDE’ width from the curtain and guides combined.  These newly updated guides feature brush seals making the door quieter and improve the seal against the weather.

The door can be fitted BEHIND or INBETWEEN the structural opening as required but always check you have order the correct dimensions to take into account the guides and endplates (full hood cover if ordered is the same dimensions).

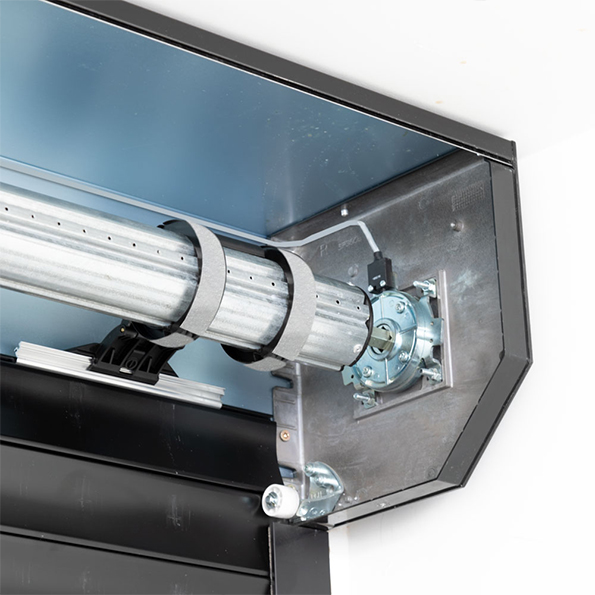

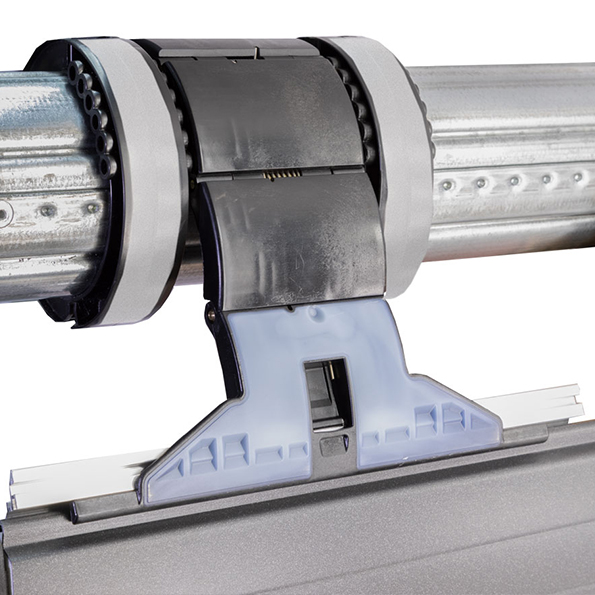

Hand crank Lined guide ZF Lock Barrel safety brake

Ordering size is the Over Guide Width (OGW) x Guide Height (GH).

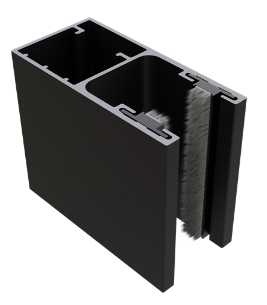

Doors have 60mm wide guides

Clear opening width = Ordering size - 120mm
Clear opening height = guide height - 50mm (to allow for the bottom slat hang-down into the guide)

Maximum width including guides is 3000mm
Maximum Height for guides is 2225mm (Total of 2430mm with the endplates and hood)

When choosing the curtain colour, the guides, endplates and hood (half hood or full) will also come in the same colour as the door curtain

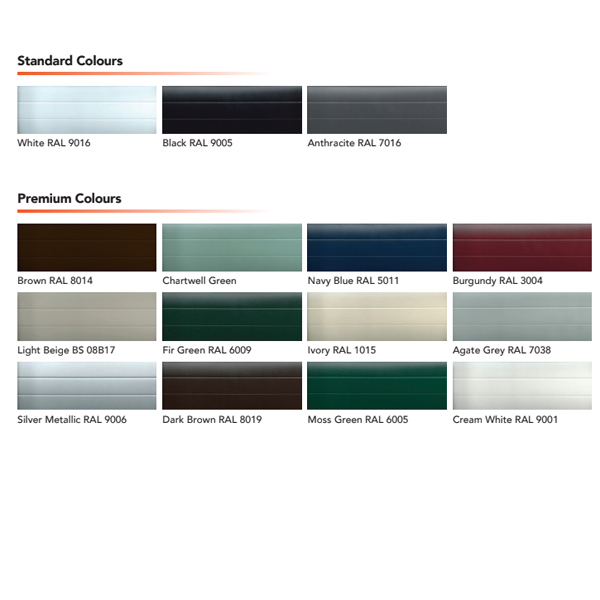

Standard Colours:
White (RAL 9016)
Anthracite Grey (RAL 7016)
Black (RAL 9005)
Optional Premium Colours:
Brown RAL 8014
Chartwell green
Navy Blue RAL 5011
Burgundy RAL 3004
Light beige BS 08B17
Fir green RAL 6009
Ivory RAL 1015
Agate Grey RAL 7038
Silver Metallic RAL 9006
Dark brown RAL 8019
Moss Green RAL 6005
Cream White RAL 9001
