Novoferm Sectional
|
The Novoport electric operating system is unique and has no central track making it ideal for garages with internal obstructions. |
 |
The range of sectional garage doors from Novoferm is quite exceptional
Novoferm ISO 20 - the Premium range of steel overhead sectional garage doors are supplied with 20mm thick double skinned steel sections made of hot galvanised thin sheet with CFC-free PUR rigid foam (insulation value k=1.0W/m K) giving good heat and sound insulation, anti-pinch profile.
Novoferm ISO 45 - the Deluxe range of steel overhead sectional garage doors are supplied with 45mm thick double skinned steel sections made of hot galvanised thin sheet with CFC-free PUR rigid foam (insulation value k=0.5W/m K) giving excellent heat and sound insulation, anti-pinch profile.
Novoferm ISO 45 - the solid Timber range of timber overhead sectional garage doors are supplied solid wood 20mm thick multi-layered face boards waterproof glued to a pine sub section overall section thickness 45mm. Door styles router cut into face boards. All Novoferm overhead sectional garage doors are supplied without locking as standard and a range of attractive handles are available for manual operated doors. ISO overhead sectional doors can be supplied with locking if required. This will be drilled on the right hand side viewed from outside as standard unless otherwise requested.
Novoport Electric Automation
One of the most unique features of a Novoferm sectional door is the optional patented Novoport remote control electric package. Unlike other boom operators the Novoport is a track mounted operator with no central boom and motor unit to hang from the garage ceiling, it is all contained within the track width at the top corner of the door. This unique motorisation method is not only convenient in garages with low headroom or obstructions, it is also a very neat and secure solution. A wall mounted control box is also supplied as standard with a built in courtesy light and a pushbutton for operating the door without the radio transmitter. This control box is connected to the motor by a curly cable enabling mounting of the control box on the wall very easy indeed. Rolling code radio technology also ensures extra security. Optional control accessories are available such as keyswitches, digital keypads, timers and so on to assist in every day easy and secure access to and from your garage.
Summary of features:
- Patented operator system - guided only in the door tracks
- Integrated safety shutdown and electronically monitored push up safeguard.
- Soft start and stop function
- Menu guided control
- Integrated fault diagnosis system
- Maintenance free tothed belt drive
- Integrated push button control in wall panel
- Integrated garage lighting (40 watt)
- Connectable outside garage lighting (up to 500 watt)
- Energy saving stand-by power input (4 watt on stand-by)

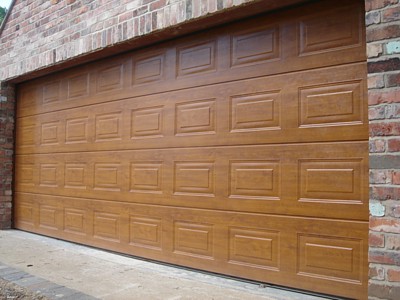

Novoferm ISO 20 and ISO 45 steel overhead sectional door panels are supplied in woodgrain and noblesse (smooth) surface pattern with pre-finished polyester exterior coating (RAL 9016 as standard). ISO 45 panels are also supplied in Golden Oak, Rosewood and Satin Grey surface finish options. All Novoferm timber overhead sectional door panels are supplied in untreated Nordic Pine (softwood).
All Novoferm ISO 20 steel overhead sectional doors are supplied with triple safety extension spring assemblies, inside double steel lifting cables arranged above the horizontal tracks.
All Novoferm ISO 45 steel overhead sectional doors are supplied with front mounted torsion spring shafts and galvanised torsion springs as standard, spring break safety feature tested in accordance with DIN EN 12604 and steel lifting cables (optional low head rear mount kit may be added if required). All Novoferm overhead sectional doors are supplied with angle frames and fascia panel made from hot galvanised thin sheet steel with a smooth surface pre-finished polyester coating (RAL 9016 as standard), frame and fascia seals are black EPDM rubber All Novoferm ISO 45 overhead sectional doors with wicket doors are supplied with aluminium wicket door profile as unfinished aluminium.
All Novoferm garage doors come with a 10 year warranty. Download colour brochure (3.47MB)
