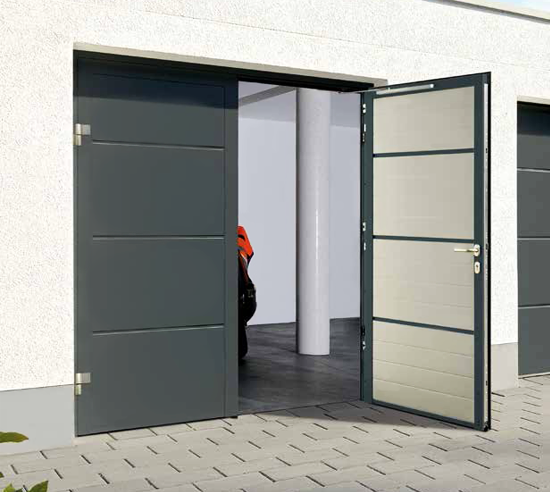

A traditional door mechanism matched with convenient insulating properties, insulated side hinged garage doors are a hugely popular choice.
Gone are the days where side hinged doors could only offer traditional, timber side hinged garage doors! This classic door type is now available in not only single skin steel, but insulated double skin steel too, along with various design options and finishes.
What Can Insulated Side Hinged Garage Doors Offer?
Often, the primary reason why one may choose to invest in a pair of side hinged garage doors is because they offer easy access for both pedestrians and vehicles. The side hinged door type also proves to be particularly popular for those who don't just store a car in their garage.
Many people now use their garage as a storage space with various valuable items, or even as an additional room to the house. If this applies to you, it is in your interest to make sure the garage door offers good performance levels and isn’t just filling a hole. A high quality door is especially important when the garage is integral.
Our top of the range double-skinned side hinged doors not only offer effective insulation, but also a significant level of strength, and therefore great security when the correct locking is incorporated.
Side Hinged Benefits:
- Appreciate the traditional mechanism of side hinged garage doors with the modern qualities now available, including effective insulation
- Keep your garage warm in the winter and cooler during the summer months
- Benefit from acoustic insulation
- The thicker door leaf is insulating, as well as in-turn creating a door with greater durability and physically stronger properties
- Our insulated side hinged doors are bespoke and made to measure, meaning a snug fit is guaranteed and insulation is enhanced
|
High grade stainless steel handles and lock covers are standard and offer a tough attractive finish to the overall visual appearance. The double deadbolt locking is extra secure and the locking mechanism is situated behind a tough cover strip, fitted on the leading door panel. |
High quality aluminium hinges are fitted as standard with secured hinge bolts, making it extremely difficult to lever the door open. Easy adjustments are possible for fine-tuning the door leaf operation. 2 or 3 hinges are fitted to each leaf depending on the door size ordered. |
Double seals and mitred corners make the Teckentrup side hinged doors exceptionally draught and rain proof. In addition to a seal on every edge of the door panel, there is also rubber sealing to the aluminium fixing sub frame. |
The inactive garage door leaf is secured with flush fitting bolts to the top and bottom, and at the bottom is further enhanced with the standard feature of a rot proof floor seal and threshold, further increasing the sealing properties and security of this door. |
Door stays are fitted as standard, protecting your door panels from slamming closed or flying open on windy days or smashing into objects/ your vehicle. These door stays are top grade spring dampened with easy adjustment. They are desinged to hold the door panel open at 90 degrees. |
Require a Greater Level of Insulation?
If your project requires a stated level of insulation with a tested U-value, then take a look at our Teckentrup Swing Secure range. It boasts premium levels of performance with an industry leading overall specification on all aspects.
The tested and certified thermal insulation is 1.4 Wm2K, better than anything else currently available as a double doorset. Made to measure, 62mm thick, stainless steel handles and industry leading construction methods make it one of the highest quality steel insulated garage doors available. Plus, there are many options to personalise to suit your requirements.
Teckentrup 62-2 Certified Performance:
Insulation (Thermal Transmittance): EN 13241-1B: 1.4 Wm²K
Resistance to Windload: EN 12424: Class 2
Watertightness: EN 12425: Class 2
Air Permability: EN 12426: Class 2
Operating Forces: EN 12604: 150N
Operating Cycles: EN 1191 C5 (200,000)
Security (optional): EN 1627/30 RC2 or Secured by Design Police Preferred Specification
Additionally, you can upgrade to LPS 1175 SR1 with a Secured by Design specification or RC2, a European standard recognised increasingly more within the UK. Ultimately, this is tested security for complete peace of mind, and a great looking, high performance set of hinged doors on your garage.
Prefer to talk through your options? With 37 years experience we're always happy to guide and help you select the highest quality, compliant, reliable and secure garage door Call and speak to one of our expert team members today on
01933 229135
Manufacturers
Offering the very best insulation is a priority for us, which is why we only work with reputable manufacturers with quality products.
Follow the buttons below to find out more about the manufacturer's side hinged ranges.
