All Novoferm iso 20 steel overhead sectional garage doors are supplied with 20mm thick double skinned steel sections made of hot galvanised thin sheet with CFC-free PUR rigid foam (insulation value k=1.0W/m K) giving good heat and sound insulation, anti-pinch profile.

All Novoferm iso 45 steel overhead sectional garage doors are supplied with 45mm thick double skinned steel sections made of hot galvanised thin sheet with CFC-free PUR rigid foam (insulation value k=0.5W/m K) giving excellent heat and sound insulation, anti-pinch profile.

All Novoferm iso 45 timber overhead sectional garage doors are supplied solid wood 20mm thick multi-layered face boards waterproof glued to a pine sub section overall section thickness 45mm. Door styles router cut into face boards.

All Novoferm overhead sectional garage doors are supplied without locking as standard.
Iso overhead sectional doors can be supplied with locking if required. This will be drilled on the right hand side viewed from outside as standard unless otherwise requested.

Novoport Automation
One of the most unique features of a Novoferm sectional door is the optional Novoport remote control automation package.
Unlike traditional boom operators the Novoport is a side mounted operator with no central boom and motor unit to hang from the ceiling, it is contained within the track width at the top corner of the door. This unique mechanism is not only convenient in garages with low headroom or obstructions it is also very neat and secure.





A wall mounted control box is also supplied as standard with a built in courtesy light and a pushbutton for operating the door without the radio transmitter.
This control box is connected to the motor by a curly cable enabling mounting of the control box on the wall very easy indeed.

Rolling code technology also ensures extra security.

Optional control accessories are available such as keyswitches, digital keypads, timers and so on to assist in every day easy and secure access to and from your garage.



Novoferm iso 20 and iso 45 steel overhead sectional door panels are supplied in woodgrain and noblesse (smooth) surface pattern with pre-finished polyester exterior coating (RAL 9016 as standard).

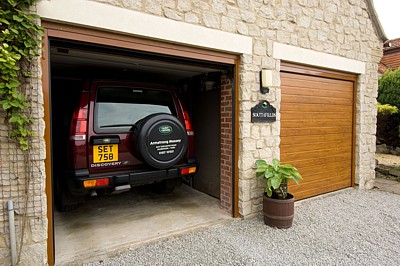

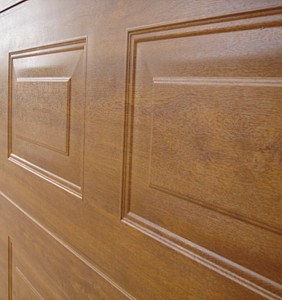

Iso 45 panels are also supplied in Golden Oak, Rosewood and Satin Grey surface finish options.

All sections are prepared for mounting hardware, floor profile, floor seal and locking (if required).

All Novoferm timber overhead sectional door panels are supplied in untreated Nordic Pine (softwood).

All Novoferm iso 20 steel overhead sectional doors are supplied with triple safety extension spring assemblies, inside double steel lifting cables arranged above the horizontal tracks.

All Novoferm iso 45 steel overhead sectional doors are supplied with front mounted torsion spring shafts and galvanised torsion springs as standard, spring break safety feature tested in accordance with DIN EN 12604 and steel lifting cables (optional low head rear mount kit may be added if required).

All Novoferm iso overhead sectional doors are supplied with angle frames and fascia panel made from hot galvanised thin sheet steel with a smooth surface pre-finished polyester coating (RAL 9016 as standard), frame and fascia seals are black EPDM rubber
All Novoferm iso 45 overhead sectional doors with wicket doors are supplied with aluminium wicket door profile as unfinished aluminium.






All Novoferm garage doors come with a 10 year warranty.


Download colour brochure (3.47MB)
